- High load swivel feet
- Application sectors: machine and equipment construction, logistics and assembly
- Any plate can be combined with any threaded spindle or ball joint
- Anti-slip plates absorb vibrations and prevent the swivel foot slipping
Description
Material, version
Plate steel, painted yellow.
Threaded spindle electro zinc-plated steel.
Threaded spindle electro zinc-plated steel.
Note

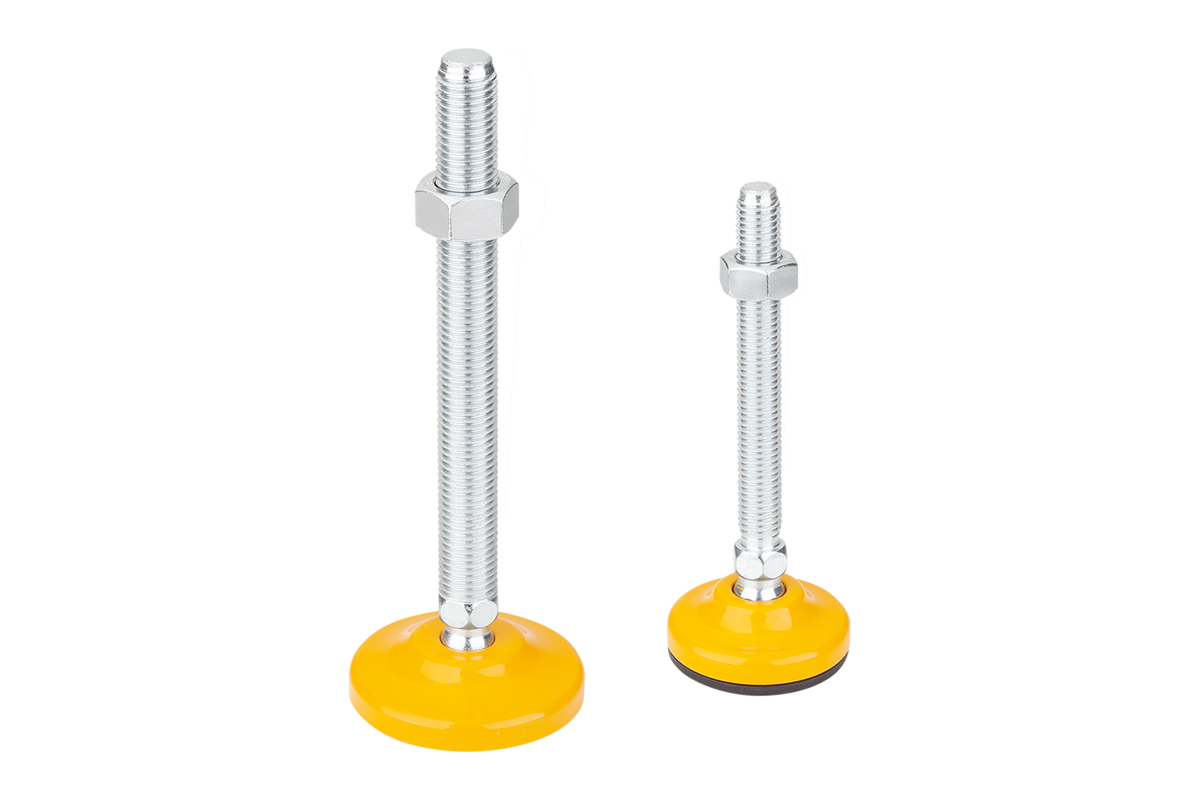

High load rated steel swivel feet with yellow painted plate.
The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.
The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.
